ANGLE BAR INTRODUCTION:
Angle steel is a structural steel for construction. It is a steel section of simple section, mainly used for the frame of metal components and workshops. Good weldability, plastic deformation properties and certain mechanical strength are required in use.

Specification:

Size	Specification: 2020-350350mm Thickness: 6m-12m (Size can be customized.)
Material	Q195,Q235B,Q355,Q345B,S235JR,S355JR,A36,ss400 etc.
Thickness	3-36mm
Length	1-12m or as customer request
Surface	Oil, Black, Galvanized, Painted
Technique	Hot rolled/Cold rolled/Galvanized

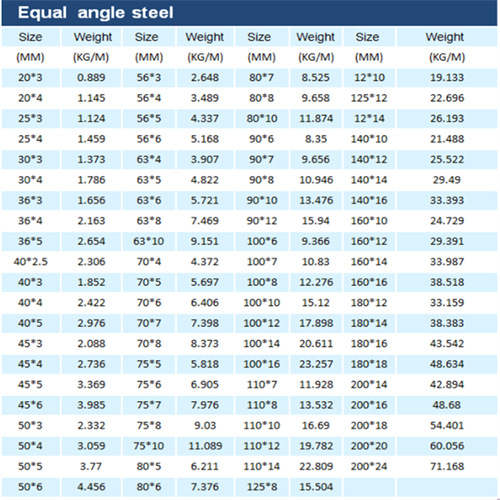

Equal Angle	Type	2#-20#
	Size	20-200mm
	Thickness	3.0-24mm
	Weight	0.597-71.168kg/m

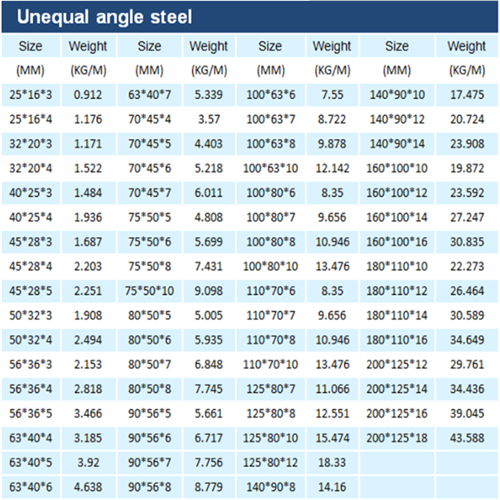

Unequal Angle	Type	2.51.6-2012.5#
	Size	2516-200150mm
	Long Side	20-200mm
	Short Side	16-150mm
	Thickness	3.0-24mm
	Weight	1.687-43.588kg/m
Application	Mechanical&manufacturing,Steelstructure,Shipbuilding,Bridging,Automobileclassis,Construction,Decoration,etc.
