bs 1387 DN50 hot dipped galvanized steel pipe

Hot-dip galvanized pipe is formed by the reaction of molten metal and iron matrix to form an alloy layer, so that the matrix and the coating are combined. The hot-dip galvanized pipe will first pickle the steel pipe to remove the iron oxide on the surface of the steel pipe. After pickling, use ammonium chloride or zinc chloride aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride to wash it for the second time, and then send it to hot dipping. in the plating tank. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion, and long service life. The hot-dip galvanized steel pipe substrate and the molten plating solution produce complex physical and chemical reactions to produce a corrosion-resistant zinc-iron alloy layer with a dense structure. The alloy layer is integrated with the pure zinc layer and the steel pipe substrate, and has strong corrosion resistance.


Product specification

Commodity

Hot dip galvanized carbon steel pipe/ tube ( HDG pipe/ GI pipe )

Material grade

Q195 = S195 / A53 Grade A
Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
Q355 = S355JR / A500 Grade B Grade C

Standard

API 5L ASTM A106, ASTM A53 ( sch10; SCH40), ASTM A795
BS1387, EN 10255, BS1139, EN 39
ISO65, JIS G3444
GB/T 3091 , GB/T 13793

Pipe surface

GALVANIZED (zinc coated)

Zinc coating

220 g/m2 ( 300 g/m2 or customized)

Pipe ends

Plain ends / bevel ends with plastic caps/ threaded both ends with coupling and caps/ grooved ends

Trade terms

FOB/ CFR/ CIF/ EXW/ FCA

Payment terms

T/T ; 100% LC AT SIGHT (others can be negotiated)

Delivery time

10-30 days after receive deposit

Main market

Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc

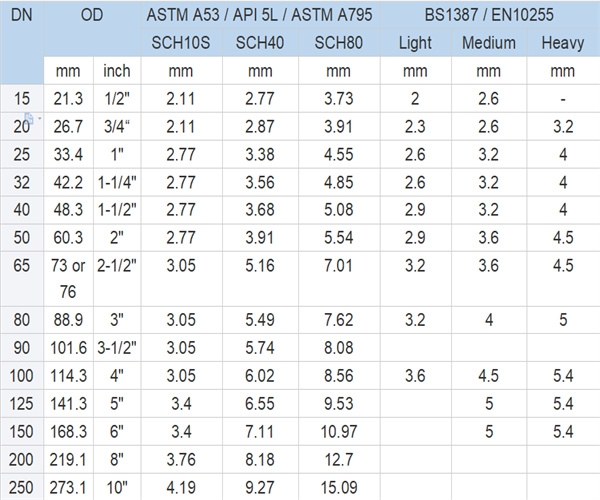

Size details:



Packing and delivery:

1. OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 219mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.
