Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, and adhering a layer of zinc thin steel plate on the surface. It is mainly produced by the continuous galvanizing process, that is, the coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel plate; alloyed galvanized steel plate. This kind of steel plate is also made by the hot-dip method, but it is heated to about 500 °C immediately after exiting the tank to form an alloy film of zinc and iron. This galvanized steel coil has good paint adhesion and weldability.
Specifications of hot dipped Galvanized Steel Coil | |
Thickness(mm) | 0.12-3mm |
Width(mm) | Coil:100-1250mm |
Coating Weighr(g/m2) | 30-275g/m2 |
Inner Diameter(mm) | 508/610mm |
Surface Structure | Regular spangle, Minimal Spangle, Zero Spangle, Big Spangle |
Surface Treatment | Chromated/oiled/slightlyoiled/dry/anti-fingerprint |
Coil Weight | 1-20mt |
Application | Household appliance, building materials, automobile, power, communication, etc. |
Applicetions: Hot dip galvanized steel is widely used in light industry, household applicances, automotive and construction industry. For various types of industrial and civil construction industry, light steel keel, building level board, corrugated board, roller shutter doors. | |
Package | 3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve |
Loading Port | Tianjin/Xingang |
Material | SGCC/DX51D/SGCH,Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490 |

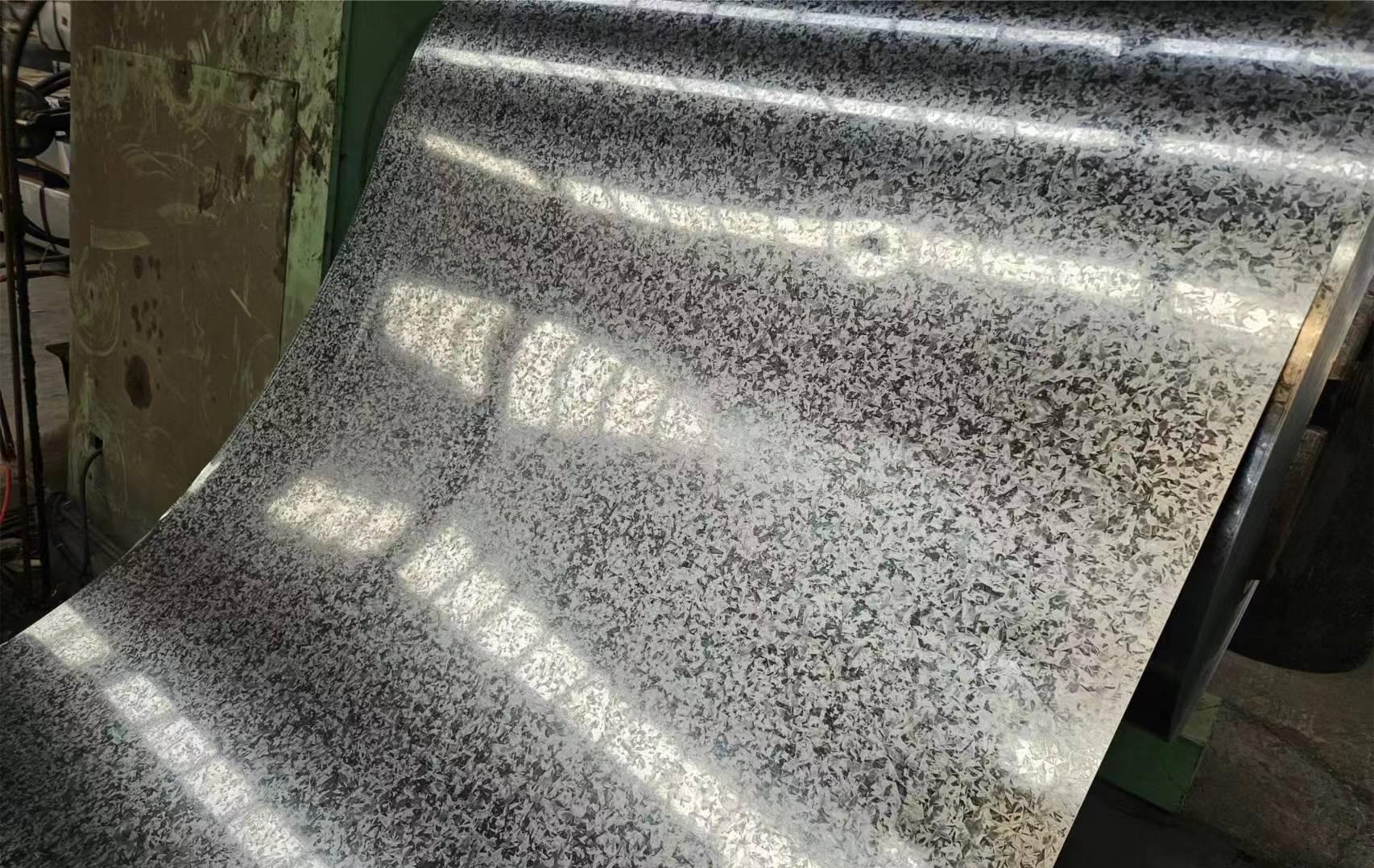

Surface structure:
After the hot-dip galvanized steel sheet is pulled out of the zinc pot, the appearance of the crystal grains formed as the zinc layer cools
and solidifies is called spangles. The size, brightness and surface morphology of spangles depend on a series of factors, but they are mainly
related to the composition of the zinc layer and the cooling method.Galvanized steel coil has the advantages of uniform coating, strong adhesion
and long service life.
Packaging & delivery
Packaging Details
3 layers of packing. Inside is kraft paper, Middle is water plastic film
and ouside GI steel sheet to be covered by steel strips with lock,
with inner coil sleeve.
