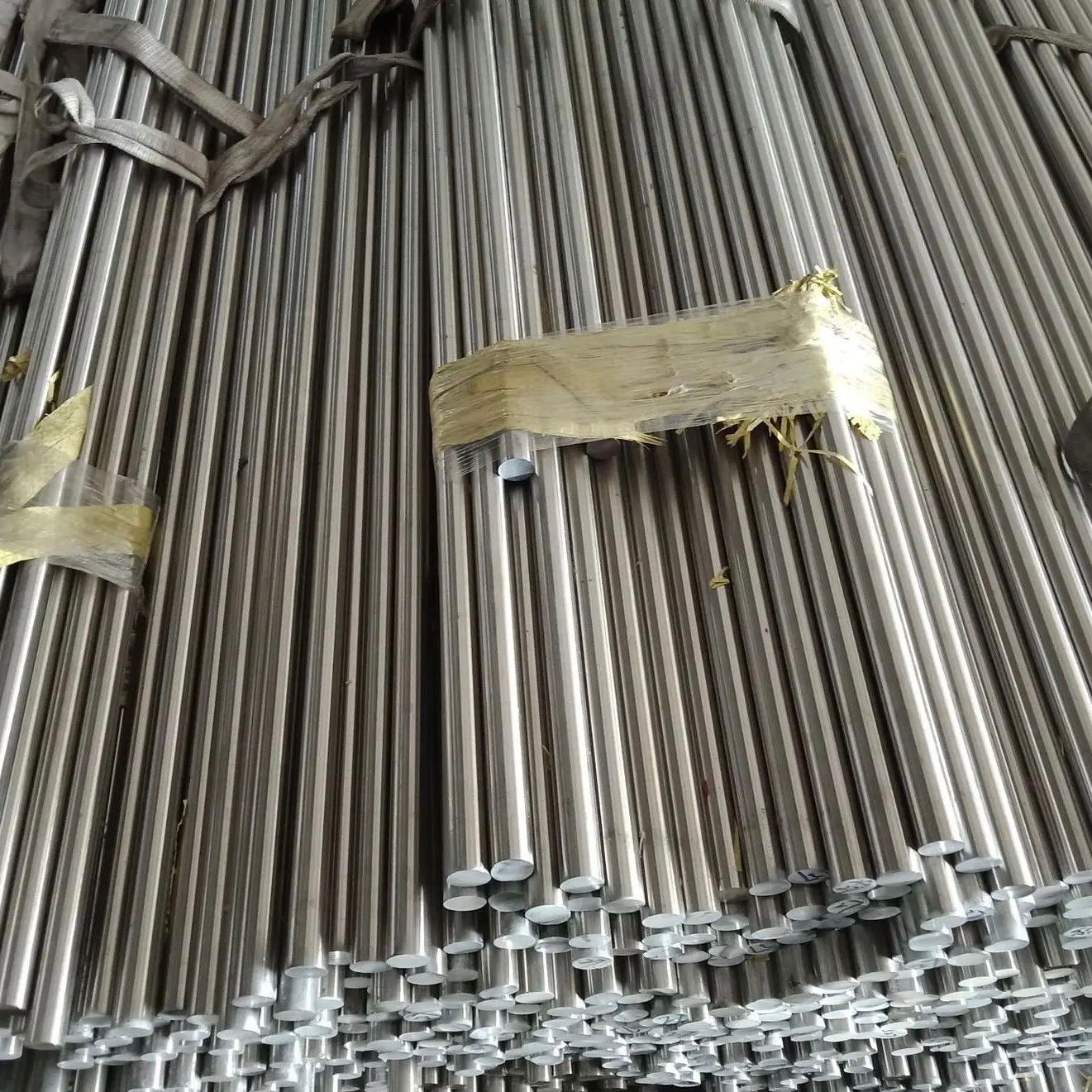

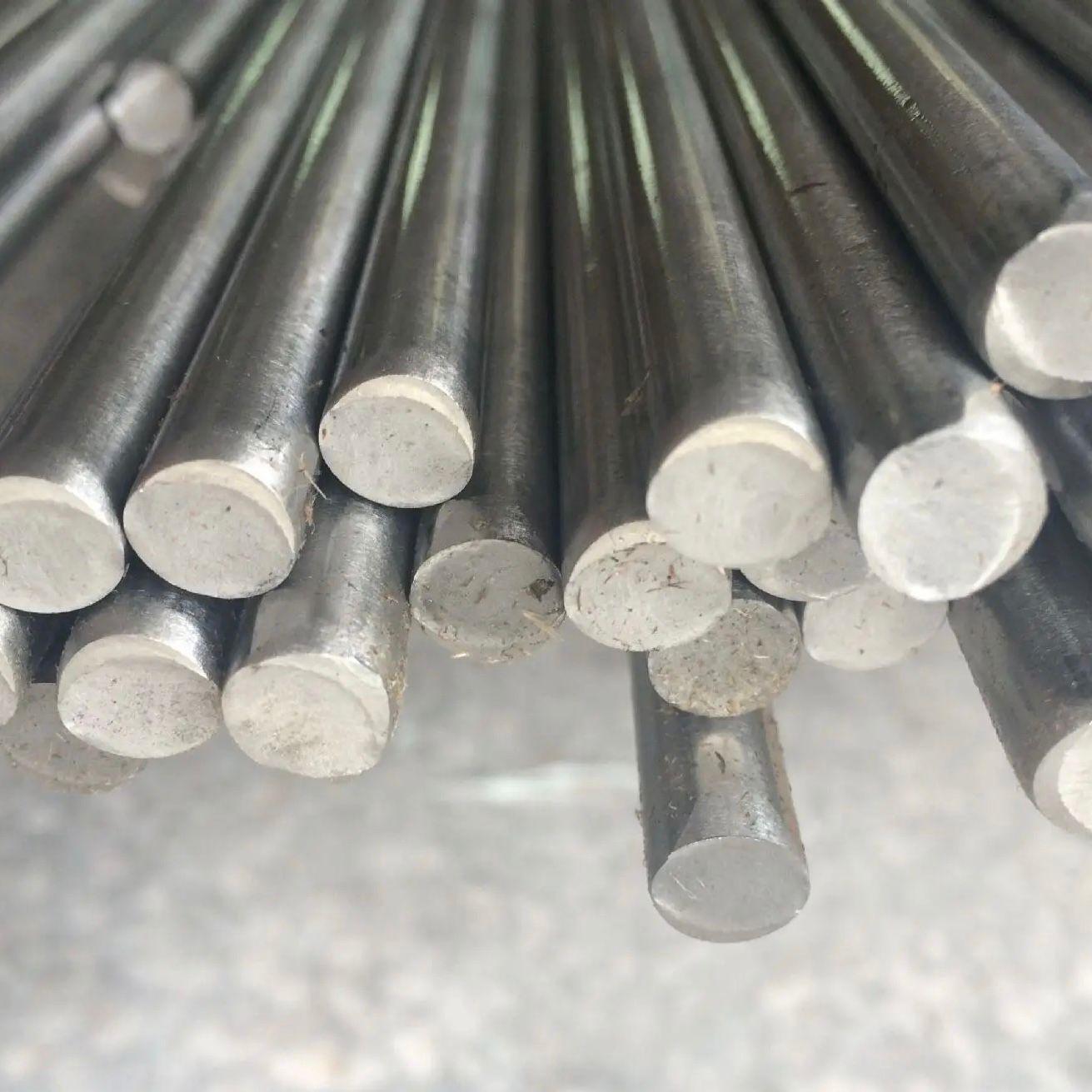

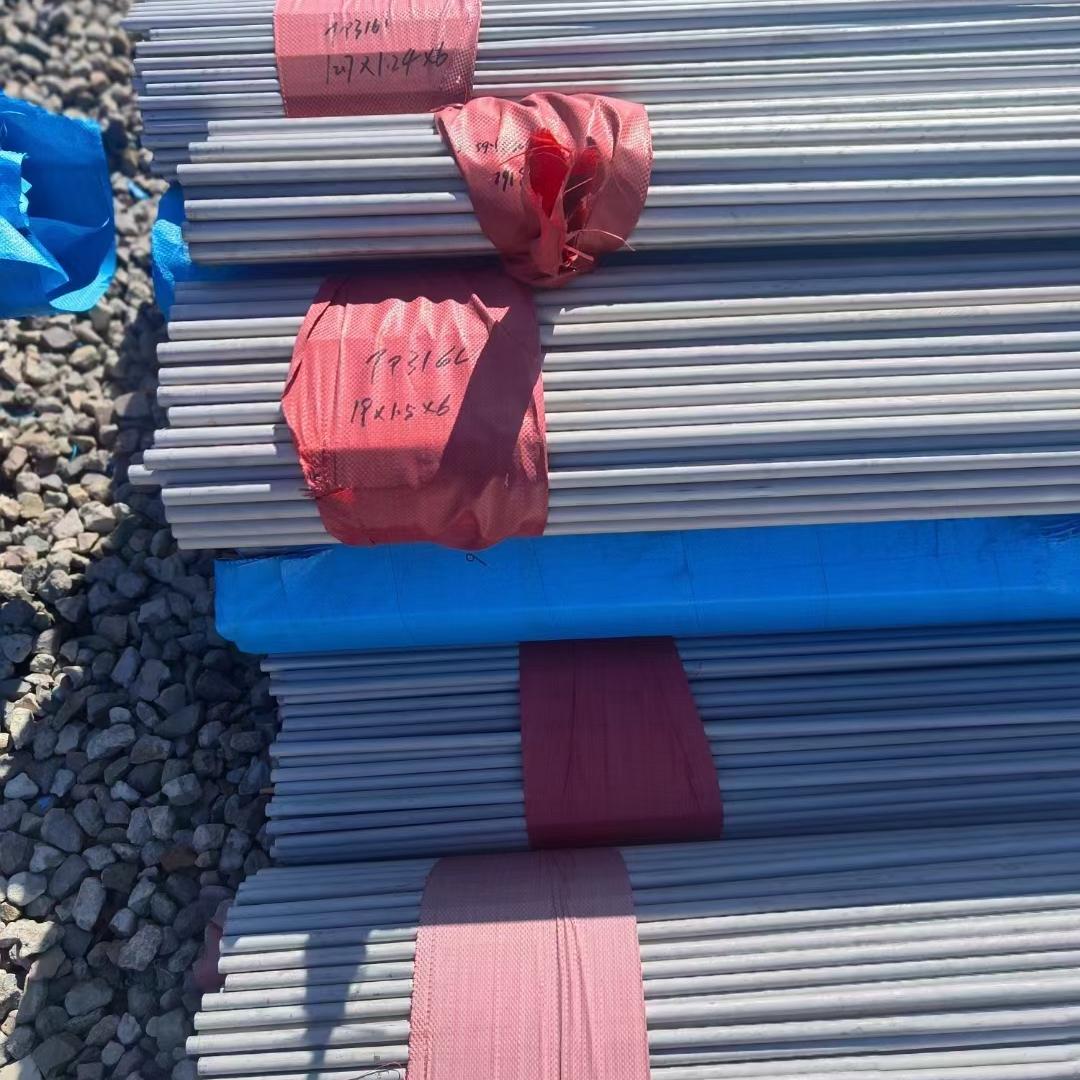

Stainless steel bar stock offers a range of unique benefits for numerous industries and applications throughout the globe. 304 stainless steel round bar: It has good corrosion resistance, heat resistance, low temperature strength and mechanical properties, good hot workability such as stamping and bending, and no heat treatment hardening phenomenon. Uses: tableware, cabinets, boilers, auto parts, medical appliances, building materials, food industry (use temperature -196°C-700°C)
Finish:
Annealed & Pickled, Bright Annealing, Polished
Dimensions:
0.5mm-500mm
Technique:Hot Rolled,Cold Rolled,Cold Drawn,Forged
Material:
200 series: 201,202,202Cu,204Cu
300 series: 301,303,303Cu,304,304Cu,304L,305,309,310,310S,316,316L,321
400 series: 409,410,420,430,431,440c,444,446
600 series: 630,631 (17-4ph,17-7ph)
Duplex: 2205,2507,904L
Mechnical Property:
ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
201 | ≥655 | ≥310 | ≥40 | ≤100 |
202 | ≥620 | ≥260 | ≥40 | ≤100 |
304 | ≥515 | ≥205 | ≥40 | ≤92 |
304L | ≥482 | ≥170 | ≥40 | ≤88 |
316 | ≥515 | ≥205 | ≥40 | ≤95 |
316L | ≥485 | ≥170 | ≥40 | ≤95 |
321 | ≥515 | ≥205 | ≥40 | ≤95 |
409 | ≥380 | ≥205 | ≥20 | ≤80 |
409L | ≥350 | ≥185 | ≥22 | ≤80 |
430 | ≥450 | ≥205 | ≥22 | ≤80 |
Nominal Diameter(mm) | Outside Diameter(mm) | Nominal Wall Thickness (mm) | ||||
N.B | NPS | SCH5S | SCH10S | SCH40S | ||
8 | 1/4″ | 13.72 | 1.65 | 2.24 | ||
10 | 3/8″ | 17.15 | 1.65 | 2.31 | ||
15 | 1/2″ | 21.34 | 1.65 | 2.11 | 2.77 | |
20 | 3/4″ | 26.67 | 1.65 | 2.11 | 2.87 | |
25 | 1″ | 33.4 | 1.65 | 2.77 | 3.38 | |
32 | 1-1/4″ | 42.16 | 1.65 | 2.77 | 3.56 | |
40 | 1-1/2″ | 48.26 | 1.65 | 2.77 | 3.68 | |
50 | 2″ | 60.33 | 1.65 | 2.77 | 3.91 | |
65 | 2-1/2″ | 73.03 | 2.11 | 3.05 | 5.16 | |
80 | 3″ | 88.9 | 2.11 | 3.05 | 5.49 | |
90 | 3-1/2″ | 101.6 | 2.11 | 3.05 | 5.74 | |
100 | 4″ | 114.3 | 2.11 | 3.05 | 6.02 | |
125 | 5″ | 141.3 | 2.77 | 3.4 | 6.55 | |
150 | 6″ | 168.28 | 2.77 | 3.4 | 7.11 | |
200 | 8″ | 219.08 | 2.77 | 3.76 | 8.18 | |
Standard | GB151 ASTM JIS DIN | |||||
Application:
1) Food processing equipment, particularly in beer brewing, milk processing & winemaking
2) Kitchen benches, sinks, troughs, equipment and appliances
3) Architectural paneling, railings & trim
Chemical containers, including for transport
4) Heat Exchangers
5) Woven or welded screens for mining, quarrying & water filtration
6) Threaded fasteners
7) Springs
